OBD Engine Diagnostics Tool Code Readers Wireless Bluetooth Apple Iphone Android

---

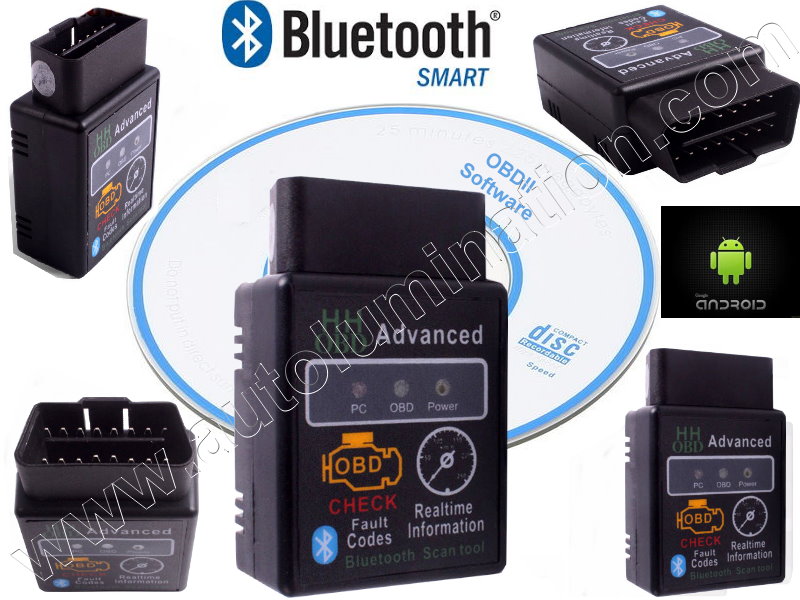

WiFi Wireless OBD-II Car Diagnostics Tool For Apple OBD iPad iPhone iPod Touch (See Details Below)	ELM327 HHOBD OBD2 EOBD Bluetooth Diagnostic Auto Scanner Reader Tool For Android
Works with PC, Apple or Android Devices	Works with PC or Android Devices
Download Software
$24.99 ea.	$12.99 ea.
Choose Color  White Choose Voltage  12 Volt	Choose Color  Black Choose Voltage  12 Volt

---

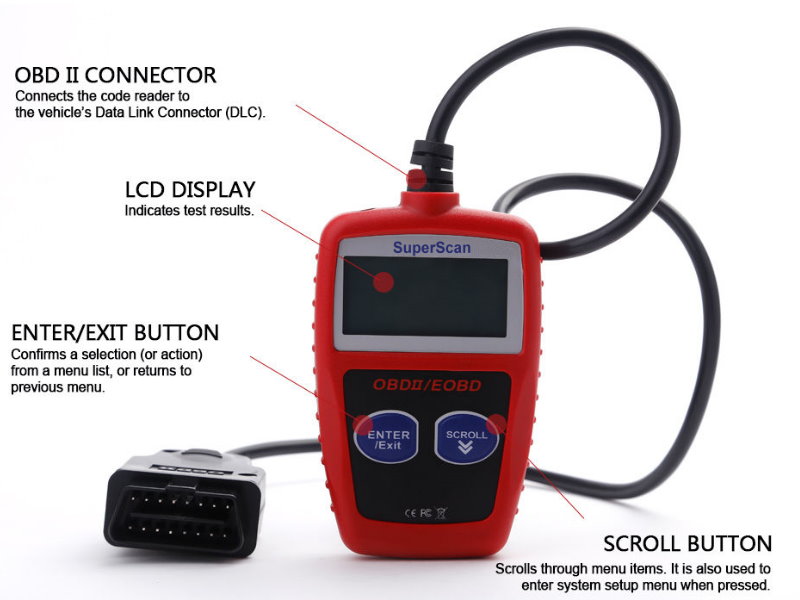

All-In-One OBD-II Car Diagnostics Tool (Plug and Play. No Cell Phone or Computer Needed)

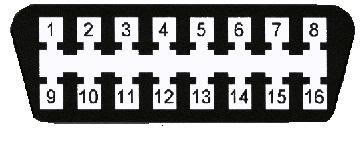

	100% BRAND NEW & ORIGINAL!!! The SuperScan CAN OBD II/EOBD Code Reader provides DIYers easy and quick access to Diagnostic Trouble Codes and their definitions on all OBD II compliant vehicles sold worldwide since 1996. Simply plug it in via its standard 16-pin OBD-II connector at the first sign of trouble and start diagnosing.  No extra cell phone, software or computer needed - Just plug and play! Functions - Work with all 1996 and later OBD II compliant US, European and Asian vehicles - Easily determine the cause of the Check Engine Light (MIL) - Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes - Turn off Check Engine Light (MIL), clear codes and reset monitors - Display DTC definitions on unit screen - View freeze frame data - Display monitor and I/M readiness status (emissions) - Multilingual menu and DTC definitions - English, Spanish, French and German, etc - Retrieve vehicle information (VIN, CIN and CVN) - Support CAN (Controller Area Network) and all other current OBD II protocols - Extremely easy to use and highly reliable Specification * Brand: Superscan * Model: MS309 * Display: Backlit, 128 x 64 pixel display * Operating Temperature: 0 ~ 60°C * Storage Temperature: - 20 ~ 70°C * Power: 8 ~ 18V provided via vehicle battery * Dimensions: 113 x 68 x 16mm * Color: Red * Net Weight: 200g * Package Weight: 245g Perfect for US vehicles from 1996, UK, European and Asian vehicles from 2001, Diesels from 2004 on-wards with a compliant OBD-II. Package 1 x Maxiscan MS309 OBDII Code Reader 1 x User Manual
$29.99
Choose Color  Red Choose Voltage  12 Volt

---

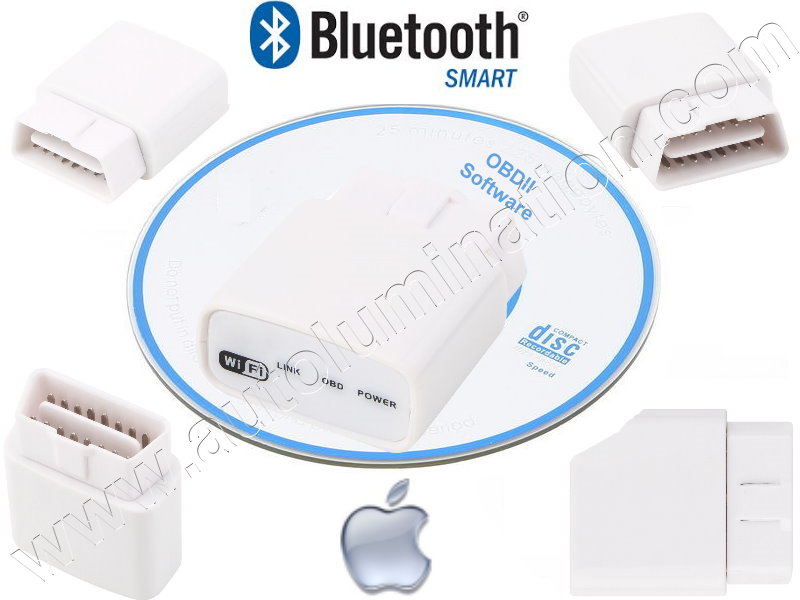

WiFi Wireless OBD-II Car Diagnostics Tool For Apple OBD iPad iPhone iPod Touch
	WiFi Wireless OBD-II Car Diagnostics Tool For Apple OBD iPad iPhone iPod Touch 100% BRAND NEW & ORIGINAL!!! Free SOFTWARE!!!   Note, this item only supports wifi connection of Iphone, Itouch Pod, ipad with IOS 4.3 or later and Android OS 2.3 or later. It doesn't support the App named iOBD2-BMW and iOBD2-VW which are for other iOBD2 hardwares. Will NOT work on 24V trucks.

Description

IOBD2 is an app for your car. It turns your Phone/Pad into an advanced display for your engine data. ★ Now you do not need to drive on with the Check Engine light on. ★ Now you do not need to wait to go to the mechanic to overcharge you to know what is wrong. ★ Now you can prepare the mechanic in advance by knowing what is wrong with your car. ★ Now you can see what is wrong with your car on your holiday so that you know if you can drive on. ★ Now you can know what your fuel consumption, torque acceleration and other engine parameters are , all in real time. ★Please verify that your vehicle is OBD-II/EOBD compliant before purchasing! Get the benefit of multiple gauges without the overwhelming clutter and the expense! (Note: Not all OBD-II compliant vehicles will have support for all of these parameters) Supported OBDII protocols: 1.ISO15765-4 (CAN) 2.ISO14230-4 (KWP2000) 3.ISO9141-2 4.J1850 VPW 5.J1850 PWM Vehicle Compatibility IOBD2 Wi-Fi works with all 1996 and & newer model year cars and light trucks (OBDII & CAN)-domestic and import. Supported device and APP OS Device Mode Apple  iOS (Require iOS4.3 or later) IPod touch iPod Touch 1st generation,2nd generation,3rd genaretion,4th generation iPhone iPhone, iPhone 3, iPhone 3GS iPhone 4, iPhone 4s, iPhone 5 iPad iPad, iPad 2,ipad 3,iPad Mini Android (Require OS2.3 or later ) All android smart phone and tablet WI-FI Connection IIOBD2 can be connected with all devices based on Apple iOS and Android OS with WI-FI. It is very reliable. Functions: 1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2.Clear trouble codes and turn off the MIL (\"Check Engine\" light) 3.Display current sensor data, including: 4.Engine RPM 5.Calculated Load Value -- Indicates a percentage of peak available torque. Reaches 100% at wide open throttle at any altitude or RPM for both naturally aspirated and boosted engines. 6.Coolant Temperature 7.Fuel System Status 8.Vehicle Speed 9.Short Term Fuel Trim (Rich/Lean) 10.Long Term Fuel Trim (Rich/Lean) 11.Intake Manifold Pressure 12.Timing Advance 13. Intake Air Temperature 14.Air Flow Rate 15.Absolute Throttle Position 16.Oxygen sensor voltages/associated short term fuel trims 17. Fuel System status 18.Fuel Pressure Operating specification Physical Dimensions: 2.75 x 1.25 x 1.2 inches Weight: 80g/ 2.83oz.p> Operating Voltage: 8-19V DC OpOperating Temperature: -15- to 100 WIFI signal name: iOBD2 Technical Specifications SSID: V-nK IP: 192.168.0.10 Subnet: 255.255.255.0 Port: 35000 Range: 50 ft (Line of sight) Antenna: Internal PoPower Consumption: 0.75 Watts (With Power Switch) Wifi Standard: 802.11a/b/g Plastic: Automotive Grade

Package Includediv> HaHardware:1 X ELM327 Wireless Scanner Software: 1 X Driver CD

Vehicle Coverage Does My Car Have OBD-II? All cars and light trucks built and sold in the United States after January 1, 1996 were required to be OBD II equipped. In general, this means all 1996 model year cars and light trucks are compliant, even if built in late 1995. Two factors will show if your vehicle is definitely OBD II equipped: 1) There will be an OBD II connector located under or around the dashboard, and 2) There will be a note on a sticker or nameplate under the hood: "OBD II compliant". Where is the connector located? The connector must be located within three feet of the driver and must not require any tools to be revealed. Look under the dash and behind ashtrays.   The Three Flavors of OBD II While the parameters, or readings, required by OBD II regulations are uniform, the auto manufacturers had some latitude in the communications protocol they used to transmit those readings to scanners. Naturally, each felt they had the one true way, so we have three different OBD II communications protocols in use. What Communications Protocol does my vehicle use? As a rule of thumb, GM cars and light trucks use SAE J1850 VPW (Variable Pulse Width Modulation). Chrysler products and all European and most Asian imports use ISO 9141 circuitry. Fords use SAE J1850 PWM (Pulse Width Modulation) communication patterns. There are some variations among captive imports such as the Cadillac Catera, a German Opel derivative, which uses the European ISO 9141 protocol. On 1996 and later vehicles, you can tell which protocol is used by examining the OBD II connector: J1850 VPW--The connector should have metallic contacts in pins 2, 4, 5, and 16, but not 10. ISO 9141-2--The connector should have metallic contacts in pins 4, 5, 7, 15, and 16. J1850 PWM--The connector should have metallic contacts in pins 2, 4, 5, 10, and 16.

UPIC Shipping Insurance

Note: Our packages are not automatically insured against loss during shipping. Insurance is the responsibility of the purchaser! $2.00 for each $100 unit of insurance

Shipping Insurance

$2.00 per $100

---
